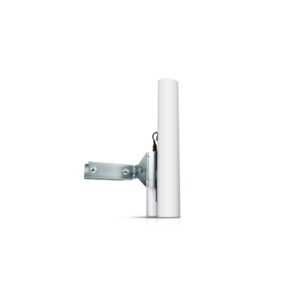

Ubiquiti AM-5G17-90 airMAX 5AC 17dBi 90deg Sector antenna
The AM-5G17 is a Ubiquiti Networks airMAX sectorized antenna with a 90° beamwidth, 17dbi gain, and operates on 5GHz spectrum. Ideal antenna for Rocket M5.
World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Mounting (for the Rocket M5) and weatherproof RF jumpers included.
Rocket M5 and AirMax BaseStation Antennas have been designed to seamlessly work together. Installing Rocket M5’s on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Ubiquiti AM-5G17-90 airMAX 5AC 17dBi 90deg Sector antenna
The AM-5G17 is a Ubiquiti Networks airMAX sectorized antenna with a 90° beamwidth, 17dbi gain, and operates on 5GHz spectrum. Ideal antenna for Rocket M5.
World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Mounting (for the Rocket M5) and weatherproof RF jumpers included.
Rocket M5 and AirMax BaseStation Antennas have been designed to seamlessly work together. Installing Rocket M5’s on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
AM5G17 Specifications:
• Frequency Range: 4.90-5.90 GHz
• Gain: 16.1-17.1dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 22dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 72 deg.
• Vpol Beamwidth (6dB): 93 deg.
• Weight: 2.4lbs (1.1kg)
• Windloading: 120 mph
