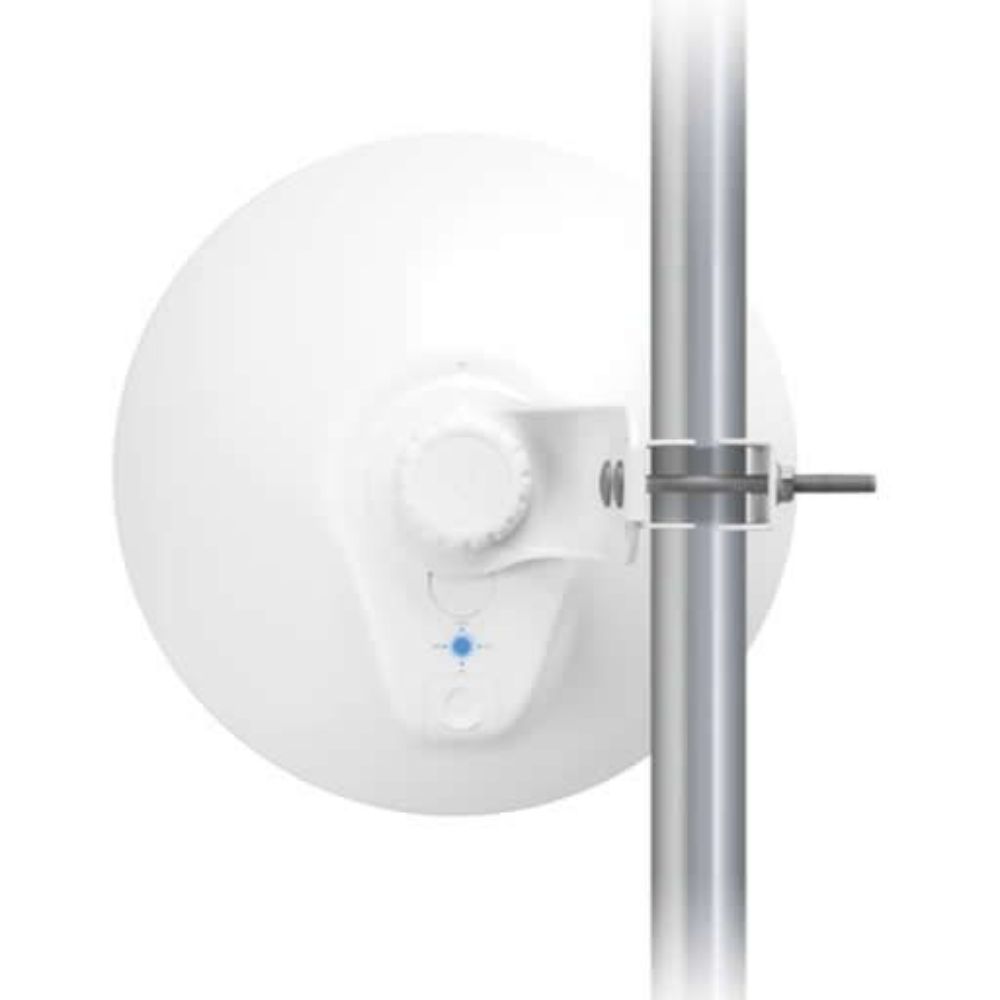

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology.
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology.
Product Specifications
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilized Plastic
• Max. Power Consumption: 9W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
• Voltage Range: 22 – 26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 24 dBi
• Beamwidth: 14°
• Sidelobe Level: -10 dB
• Front-to-Back Ratio: 27 dB
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
