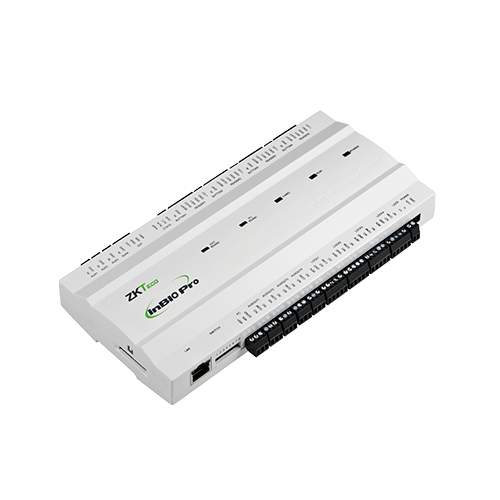

The ZKTeco InBio460 Pro is a professional-grade access control controller engineered to deliver robust and scalable security for medium to large installations. Built as part of ZKTeco’s Pro Series, it supports up to four doors and can interface with a mix of RS-485 fingerprint readers and Wiegand RFID readers, enabling multi-factor authentication and versatile deployment configurations.

With high storage capacities for user credentials and event logs, the InBio460 Pro can handle demanding access management requirements. It communicates over TCP/IP for real-time data exchange and supports remote system configuration and monitoring when integrated with centralized software like ZKBioSecurity. The controller’s sturdy design and flexible I/O interfaces make it suitable for use in offices, factories, educational campuses, and other controlled access environments across Pakistan.

Key Features

Multi-Door & Reader Support

• Controls up to 4 doors and supports up to 12 readers (8 RS-485 readers + 4 26-bit Wiegand readers).

• Compatible with both RS-485 biometric readers and Wiegand RFID readers for flexible system design.

Capacity & Storage

• Up to 60,000 cardholder credentials for RFID access control.

• Up to 20,000 fingerprint templates for secure biometric authentication.

• Stores up to 100,000 event logs for comprehensive access tracking and reporting.

Communication & Integration

• TCP/IP communication for network-based management and remote system access.

• RS-485 and Wiegand interfaces for direct reader connectivity.

• Seamless integration with access management software such as ZKBioSecurity for centralized control and reporting. (Common for ZKTeco panels)

Inputs & Outputs

• 12 total inputs including exit buttons, door status sensors, and auxiliary triggers (4 of each).

• 8 Form-C relay outputs (4 for locks and 4 for auxiliary functions) to control electric locks and alarm systems.

Performance & Power

• Built on 32-bit 1.2 GHz CPU with 128 MB RAM and 256 MB flash memory for reliable operation.

• Operates on 9.6 V–14.4 V DC typical access control power setups.

• Designed for stable performance within 0 °C to 45 °C temperature range and standard humidity conditions.

Security & System Logic

• Supports secure access control logic functions such as anti-passback, access levels, and group permissions when integrated with software and compatible systems (standard in ZKTeco controllers)

• Ideal for centralizing door access policies across multi-door environments in corporate, educational, and institutional installations.
