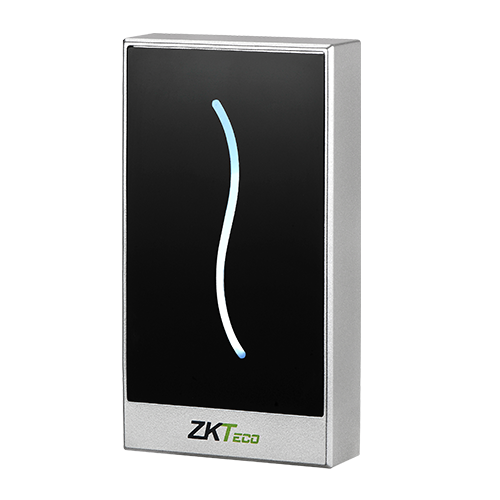

ZKTeco ProID10 Physical Access Reader
The ZKTeco ProID10 RFID Access Reader is a reliable RFID card reader designed for modern access control systems. Built with durable materials and advanced card reading technology, the ZKTeco ProID10 Access Reader provides secure identification and seamless integration with access control controllers.
Part of the ZKTeco ProID series, this reader supports multiple card technologies such as 125kHz EM and 13.56MHz IC/MIFARE, making it a flexible solution for different security environments.
Its compact design and IP65 waterproof protection allow the reader to be installed both indoors and outdoors, ensuring reliable operation in various environmental conditions.
Advanced RFID Card Reading
The ZKTeco ProID10 Access Reader supports high-speed card recognition with a read range of approximately 3.5 cm and a reading time of ≤300 ms, ensuring quick and reliable access authentication.
This allows users to access secured areas quickly without delays.
Flexible System Integration
The ZKTeco ProID10 Access Reader supports Wiegand 26-bit and 34-bit output formats, enabling easy integration with a wide range of access control systems and controllers.
It can be connected with:
-
Access control controllers
-
Biometric terminals
-
RFID authentication systems
-
Security management platforms
Durable IP65 Waterproof Design
Designed with IP65-rated protection, the ZKTeco ProID10 Access Reader offers resistance to dust and water, making it suitable for outdoor installations such as building entrances and gates.
The robust ABS + PC housing ensures long-term durability.
LED and Buzzer Indicators
The reader includes visual and audio indicators for user interaction:
These indicators help confirm successful card authentication.
Key Features
-
Supports 125kHz EM and 13.56MHz RFID cards
-
Wiegand 26/34-bit output for system integration
-
IP65 waterproof design for indoor/outdoor use
-
Fast reading speed ≤300 ms
-
Compact and durable design
-
LED and buzzer status indicators
Specifications
| Feature |
Details |
| Model |
ZKTeco ProID10 |
| Card Type |
125kHz EM / 13.56MHz IC |
| Read Range |
Up to 3.5 cm |
| Reading Time |
≤ 300 ms |
| Output Format |
Wiegand 26 / 34 bit |
| Operating Voltage |
7 – 13V DC |
| Current Draw |
< 80 mA |
| Protection |
IP65 |
| Material |
ABS + PC |
| Dimensions |
80.5 × 44 × 15 mm |
Ideal Applications
The ZKTeco ProID10 Access Reader is suitable for:
-
Office access control systems
-
Commercial building security
-
Industrial facilities
-
Residential security systems
-
Parking and gate access systems
