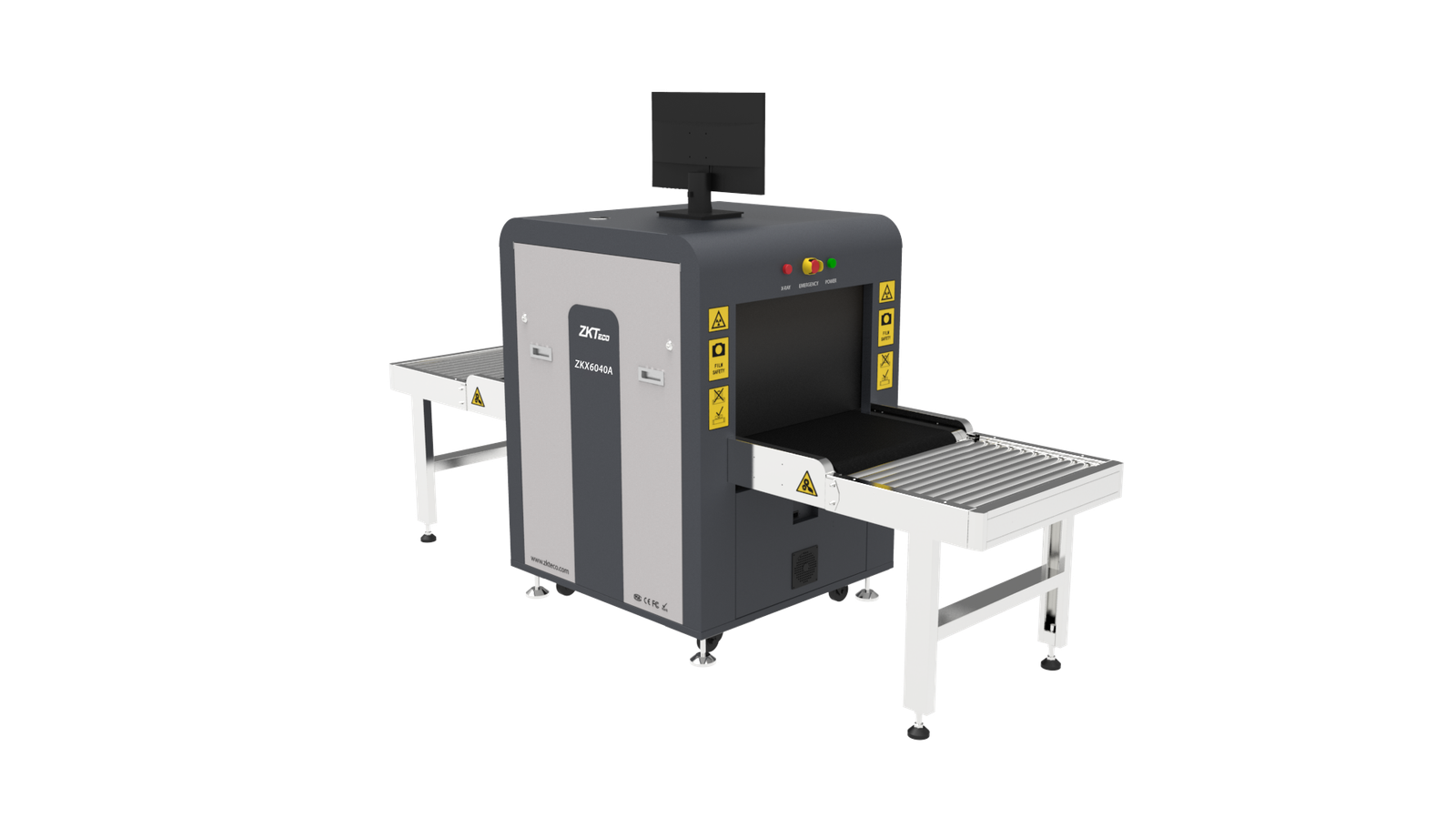

The ZKTeco ZKX6040A is a high‑quality, single‑energy X‑ray baggage inspection system engineered for efficient security screening and threat detection in various commercial and public environments. Featuring a tunnel size of 600 mm (width) × 400 mm (height), the ZKX6040A is optimized for scanning everyday luggage and small packages, delivering sharp images through advanced X‑ray generators and detectors. Its compact design and foldable keyboard enhance mobility and on‑site usability, making it suitable for placement in hotels, transportation hubs, retail centers, and office entrances.

Equipped with a TCP/IP communication interface and support for ZKTeco’s dedicated inspection software (ZKBio SIS), the ZKX6040A allows operators to view detailed scanning images and manage inspection data efficiently. Featuring a robust conveyor system with a load capacity designed for daily use, this machine supports sustained operation with minimal maintenance, helping organizations enforce security protocols with confidence.

Key Features

Inspection & Performance

• Designed for baggage scanning with tunnel dimensions of 600 × 400 mm (W × H), suitable for briefcases and carry‑on luggage.

• Uses a single‑energy X‑ray detector and reliable imaging algorithms for clear visual inspection.

• Suitable for security checkpoints in hotels, shopping malls, airports, transportation hubs, and offices.

Imaging & Analysis

• Provides pseudo‑color scanning images and detailed object visualization.

• Supports high‑resolution imaging with wire resolution and steel penetration optimized for threat detection.

Conveyor & System

• Conveyor speed approx. 0.30 m/sec and stable load capacity for efficient throughput.

• Standard conveyor height of 680 mm for ergonomic loading and unloading.

Software & Connectivity

• Integrated with ZKBio SIS security inspection software for image viewing and data management.

• RJ45 (TCP/IP) communication interface enables networked operation and monitoring.

Operational & Environmental

• Built‑in Windows‑based computer system with monitor screen for direct control and image review.

• Designed for reliable operation within wide temperature and humidity ranges.

• Meets safety standards with controlled radiation leakage and film safety compliance.

Power & Physical

• Dual‑voltage support for 110 VAC and 220 VAC power supply.

• Solid construction with net weight around 380 kg and packaged dimensions for transport.
