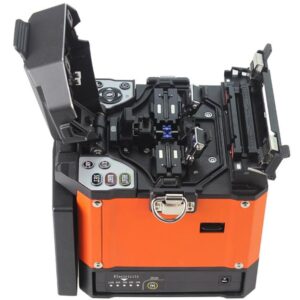

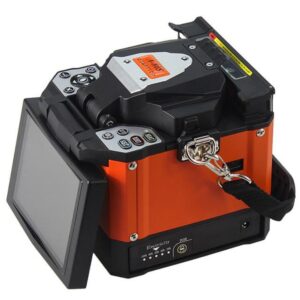

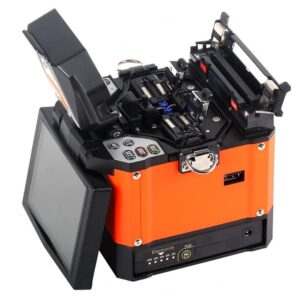

Microlink Fiber Optical Automatic Fusion Splicing Machine

Microlink Fiber Optical Automatic Fusion Splicing Machine

Short Description

Model : ML-FOAFSM-0001

Dimension :143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)

Weight : 2.31KG (with battery) / 1.95KG (without battery)

Number of Fiber :Single

Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber / Cable :0.25~3.0 mm / Indoor Cable

Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

Splicing Mode :Preset 7 modes / Max 128 modes

Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)

Model : ML-FOAFSM-0001

Dimension :143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)

Weight : 2.31KG (with battery) / 1.95KG (without battery)

Number of Fiber :Single

Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber / Cable :0.25~3.0 mm / Indoor Cable

Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

Splicing Mode :Preset 7 modes / Max 128 modes

Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)

Return Loss :>>60dB

Lighting :3 White LEDs

Splicing Time Auto mode : 9 sec / Quick mode : 7 sec

Estimated Splice Loss :Available

Protection Sleeve Length: 20~60 mm

Heating Time Typical heating time: 35 sec

Results Storage :The last 2000 results

Tension Test :1.96~2.25N

Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s

Storage Condition : 0~95% relative humidity, -40~80°C

Display: 90° bi-directional view, 5.0” Color High Resolution Display

Fiber View & Magnification :X, Y, XY, X/Y : 520X Magnification

Power Supply :AC Input 100-240V, DC Input 9-14V

No. of Splice / Heating with Battery :4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

Operating Methods :Button / Touch screen

Automatic Calibration : Automatic arc calibration by air pressure and temperature

Electrode Life : 3500 arcs, can be extended by using an electrode grinder

Terminal USB : 2.0 / MINI USB / HDMI



Features:
1. Core alignment splicing (DACAS Digital Analysis Core Alignment System)
2. The highest 520X magnification and resolution

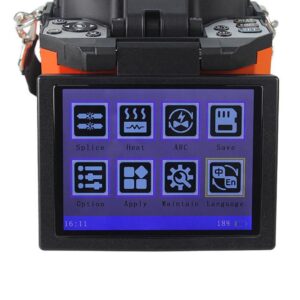

3. 5″ Color LCD touch screen
4. Double tapping (zoom in & out)
5. Detachable SOC holder and heating oven for splice-on connectors
6. 3 Bright LEDs for dark environments
7. Ceramic clamp for improved durability
8. Easy to replace electrodes
9. Mirrorless design for easy maintenance
