| Model |

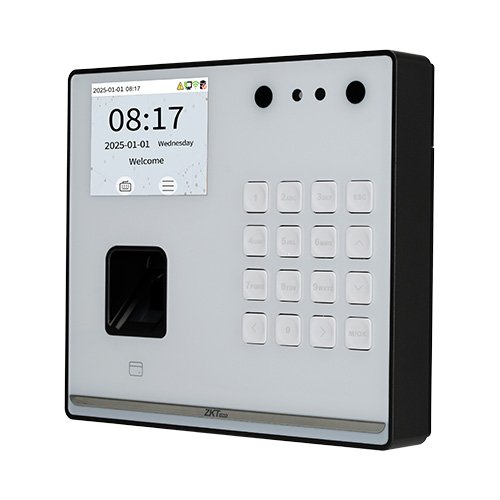

SenseFP M2 |
| Display |
2.8″ TFT Color LCD Screen (320 × 240) |
| Camera |
N/A |
| Operating System |
Linux |
| CPU |
Dual Core @ 1GHz |
| RAM |
512 MB |
| ROM |
8 GB |
| Speaker |
8Ω @ 1W |
| Physical Keypad |
16 Keys |
| Fingerprint Sensor |
ZK Optical Sensor |
| Casing Color |
Black and White |
| Authentication Methods |
Fingerprint / Card / Password |
| Fingerprint Capacity |
3,000 (1:N) |
| Face Capacity |
N/A |
| Card Capacity |
3,000 (1:N) |
| User Capacity |
3,000 |
| Transaction Capacity |
150,000 |
| Max Password Length |
8 Digits |
| Authentication Speed |
Less than 1 sec (Fingerprint) |
| Touchless Recognition Distance |
N/A |
| FAR |
≤ 0.0001% (Fingerprint) |
| FRR |
≤ 0.1% (Fingerprint) |
| Biometric Algorithm |
ZKFingerprint V13.0 (Standard) / V10.0 (Optional) |
| Card Type |
ID Card 125 kHz (Standard), IC Card 13.56 MHz (Optional) |
| Standard Functions |
ADMS, DST, Photo Capture, Event Photo Capture,
Schedule Bell, Tamper Switch Alarm, HTTPS / SSH Access,
Multiple Authentication, T9 Keyboard |
| Optional Functions |
IC Card, Wi-Fi, Backup Battery |
| Power Supply |
DC 12V / 3A |
| Backup Battery |
2,000 mAh (Up to 4 hrs operation) |
| Operating Temperature |
-5°C to 45°C |
| Operating Humidity |
10% – 90% RH |
| Dimensions |
154 × 138 × 34 mm |
| Weight |
0.99 kg |
| Supported Software |
ZKBio Zlink (Mobile & Cloud), ZKBio Time (On-Premise) |
| Installation |
Wall Mount (Asian / Single Gang Box) |
| Certifications |
ISO9001, ISO14001, CE, FCC, RoHS |
