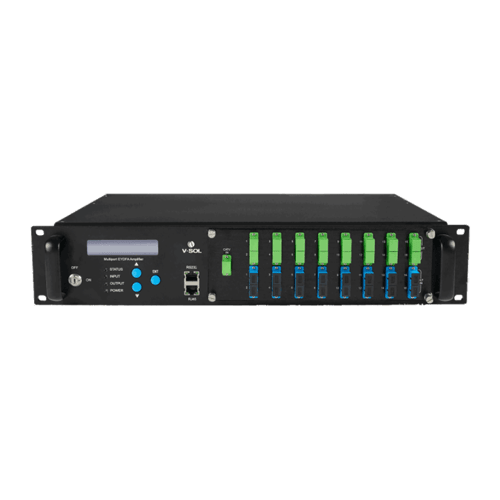

VSOL V8816W-16P 1550nm PON EYDFA Amplifier
The VSOL V8816W-16P EYDFA is a carrier-grade fiber optical amplifier built for modern FTTH and CATV distribution networks. Combining low-noise EDFA technology with high-power EYDFA amplification, this device is designed to deliver stable, long-distance optical transmission for high-density PON deployments.
If you are looking to buy VSOL V8816W-16P EYDFA in Pakistan, this amplifier is an ideal solution for ISPs, CATV operators, and enterprise fiber networks.
High Power 40dBm Optical Output
One of the biggest strengths of the VSOL V8816W-16P EYDFA is its ultra-high optical output power.
Features include:
- Total output power up to 40dBm
- Per-port optical power up to 19–22dBm
- Stable long-distance transmission
- Reduced need for multiple amplifiers
This makes it ideal for:
- large FTTH networks
- CATV broadcasting
- high-density PON deployments
- telecom infrastructure
16 Optical Ports with Built-in CWDM
The VSOL V8816W-16P EYDFA includes 16 output ports, each integrated with CWDM technology.
This enables:
- multiplexing CATV and PON signals
- simplified fiber infrastructure
- reduced deployment cost
- seamless network integration
Compatible with EPON, GPON & 10G PON
The VSOL V8816W-16P EYDFA fully supports:
- EPON
- GPON
- XG-PON / 10G PON
This ensures future-ready compatibility with modern FTTx deployments.
Advanced Low-Noise Optical Design
The VSOL V8816W-16P EYDFA uses:
- premium pump lasers
- double-cladding active fiber
- APC / ACC / ATC optical circuit technology
Benefits include:
- low noise figure
- stable optical performance
- high reliability
- enhanced signal quality
Integrated CATV + PON Dual Inputs
The VSOL V8816W-16P EYDFA supports:
- CATV optical input
- PON optical input
This allows simultaneous transmission of:
- internet data
- IPTV services
- CATV video signals
Perfect for triple-play FTTH networks.
Remote Management & Monitoring
The VSOL V8816W-16P EYDFA supports advanced remote management through:
- SNMP
- WEB GUI
- RJ45 network interface
This allows administrators to:
- monitor amplifier status
- manage optical parameters
- detect faults remotely
- improve network efficiency
Dual Redundant Power Supply
The VSOL V8816W-16P EYDFA features:
- dual hot-swappable power supplies
- automatic power switching
- AC/DC power options
This ensures:
- uninterrupted operation
- high network reliability
- carrier-grade redundancy
Automatic Optical Protection
The VSOL V8816W-16P EYDFA includes automatic laser protection features.
If input optical power drops below threshold:
- laser shuts down automatically
- protects internal optical components
- improves operational safety
Ideal for Large-Scale FTTH Networks
The VSOL V8816W-16P EYDFA is perfect for:
- FTTH deployments
- CATV distribution
- telecom operators
- ISP networks
- HFC infrastructure
- triple-play services
Key Features
- 40dBm high optical output
- 16 optical output ports
- Built-in CWDM on every port
- Compatible with EPON / GPON / XG-PON
- Low-noise EDFA + EYDFA design
- SNMP & WEB remote management
- Dual redundant power supplies
- Automatic optical protection
- CATV + PON dual fiber input
- Carrier-grade reliability
Specifications
| Feature |
Details |
| Model |
V8816W-16P |
| Brand |
VSOL |
| Product Type |
1550nm PON EYDFA |
| Output Ports |
16 |
| Output Power |
Up to 40dBm |
| Wavelength |
1545–1565nm |
| PON Compatibility |
EPON / GPON / XG-PON |
| Management |
SNMP / WEB |
| Power Consumption |
100W |
| Form Factor |
1U Rack Mount |
| Weight |
7.5 Kg |
Ideal Applications
The VSOL V8816W-16P EYDFA is suitable for:
- FTTH networks
- CATV systems
- telecom operators
- ISP backbone infrastructure
- HFC networks
- IPTV distribution
