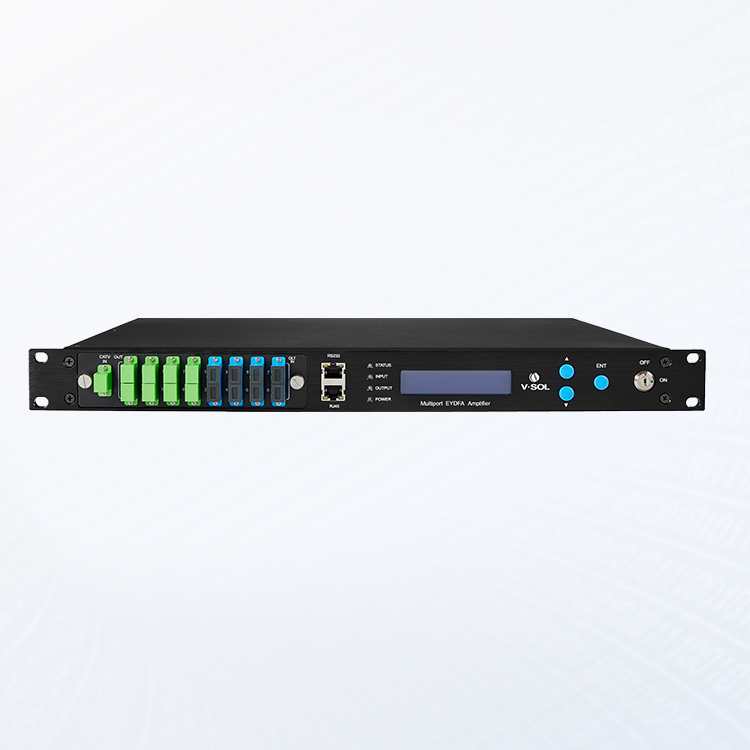

VSOL V8816W-8P-22 1550nm PON EYDFA
The VSOL V8816W-8P-22 is a carrier-grade 8-Port 1550nm PON EYDFA optical amplifier designed for FTTH CATV and PON network integration. Equipped with built-in CWDM technology, high optical output power, and dual power redundancy, it delivers stable and efficient optical signal amplification for large-scale fiber deployments.
The amplifier is fully compatible with EPON, GPON, and 10G PON networks, making it ideal for ISPs, telecom operators, and enterprise FTTH infrastructure.
Key Features
- 8-Port 1550nm PON EYDFA
- Built-in CWDM technology
- Maximum output power up to 37dBm
- Supports GPON / EPON / 10G PON
- Dual power redundancy
- SNMP & WEB management
- Low noise optical amplification
- SC/APC optical connectors
- Adjustable output power
- Carrier-grade FTTH solution
High-Power Optical Amplification
The VSOL V8816W-8P-22 provides:
Up to 37dBm Optical Output Power
Benefits include:
- stable long-distance transmission
- improved signal quality
- reduced optical loss
- efficient CATV signal distribution
Perfect for high-density FTTH deployments.
Built-in CWDM Technology
The amplifier includes:
- integrated CWDM multiplexing
- CATV and PON signal integration
- simplified FTTH deployment
- efficient optical resource utilization
Supports:
- XPON: 1310/1490nm
- 10G PON: 1270/1577nm
8-Port Optical Distribution
The VSOL V8816W-8P-22 features:
- 8× OLT PON ports
- 8× COM ports
Providing scalable optical distribution for:
- ISP networks
- CATV systems
- GPON infrastructures
- FTTH broadband deployments
Dual Power Redundancy
The device supports:
- AC power input
- DC power input
- automatic power switching
- redundant power protection
Ensuring maximum network reliability and uptime.
Advanced Network Management
The amplifier supports:
- SNMP management
- WEB interface management
This allows administrators to:
- monitor optical performance
- configure amplifier settings
- manage network stability remotely
Stable Carrier-Grade Performance
The VSOL V8816W-8P-22 delivers:
- low noise figure ≤6dB
- output stability ≤0.3dB
- high optical isolation
- reliable continuous operation
Ideal for professional FTTH and CATV deployments.
Technical Specifications
| Feature |
Details |
| Model |
V8816W-8P-22 |
| Product Type |
1550nm PON EYDFA |
| Output Power |
Up to 37dBm |
| PON Ports |
8 |
| COM Ports |
8 |
| CATV Wavelength |
1545~1565nm |
| PON Pass Wavelength |
XPON 1310/1490nm |
| Connector Type |
SC/APC |
| Management |
SNMP / WEB |
| Power Redundancy |
Dual Power Supply |
| Dimensions |
370×483×44mm |
| Weight |
5.5Kg |
Ideal Applications
The VSOL V8816W-8P-22 is ideal for:
- FTTH networks
- CATV optical systems
- GPON deployments
- EPON infrastructure
- ISP broadband networks
- telecom optical distribution
Why Choose VSOL V8816W-8P-22
The VSOL V8816W-8P-22 offers:
- powerful optical amplification
- reliable FTTH signal distribution
- integrated CWDM technology
- carrier-grade network stability
- flexible GPON/EPON compatibility
An excellent solution for modern FTTH and CATV optical networking projects.
