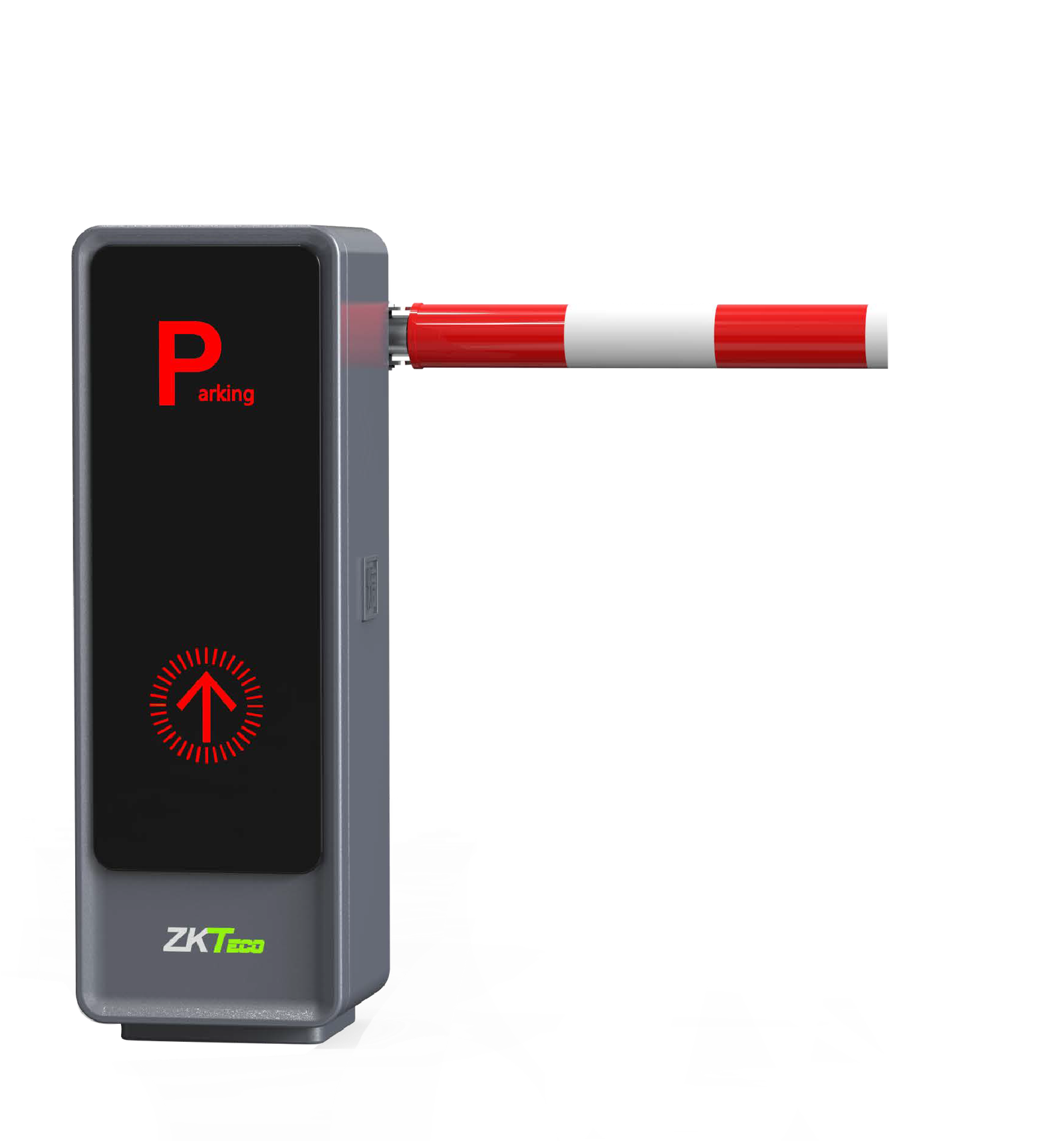

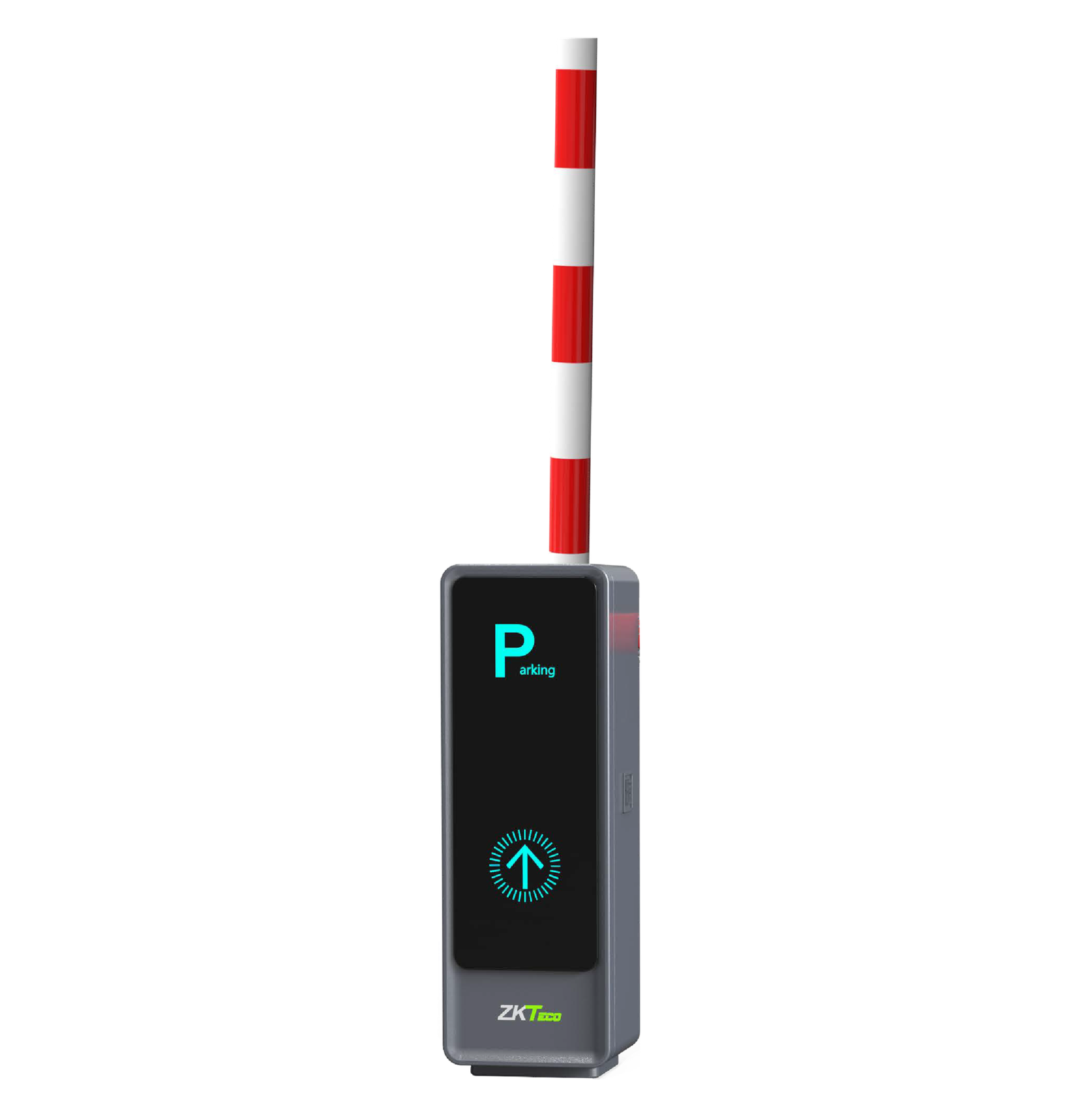

The ZKTeco BG2000 is a premium automatic boom barrier gate engineered by ZKTeco for secure and efficient vehicle entry and exit control. Built with a high‑efficiency brushless DC motor and a sturdy, powder‑coated steel chassis, the BG2000 offers reliable operation and long system life, even in demanding outdoor environments. Designed to support rapid traffic flow with a fast opening speed, it is ideal for busy parking lots, industrial entrances, gated communities, and other controlled access points in Pakistan.

Equipped with an embedded programmable controller and integrated LED indicators, the BG2000 ensures clear status visibility and simple on‑site or remote setup. The aluminum foam straight barrier arm enhances resistance to collision and wind forces, maintaining stability and safety. With robust protection ratings and adaptable power options, this barrier gate is suitable for diverse regional conditions and installations that require high‑performance vehicle access control.

Key Features

Performance & Durability

• High‑efficiency brushless 24V DC motor for smooth operation and reduced maintenance.

• Fast operating speed up to 0.6 seconds, supporting efficient traffic flow.

• Motor rated for up to 5 million cycles (MCBF) for long service life.

• Robust powder‑coated steel chassis withstands harsh outdoor conditions.

Design & Construction

• Aluminum foam straight barrier arm with strong anti‑collision and wind resistance.

• Built‑in LED status lights for clear on/off signaling.

• IP54 protection level offers reliable performance in varied weather.

Control & Integration

• Programmable control board simplifies installation and system setup.

• Can be controlled locally and integrated with access systems or remote apps (such as ZKBarrier App) through optional network modules (4G/TCP‑IP).

• Remote control support (up to ~30 m) for convenient operation.

Power & Environment

• Flexible power supply options: AC 100–240 V or DC 24 V input.

• Operates reliably in wide temperature range (approximately ‑40°C to +75°C).

• Low power consumption (~100 W) ensures energy efficiency.

Physical & Installation

• Boom arm length up to 3 meters, suitable for most standard parking entries.

• Compact footprint and manageable weight (approx. 45–48 kg) for easy site fitting.
