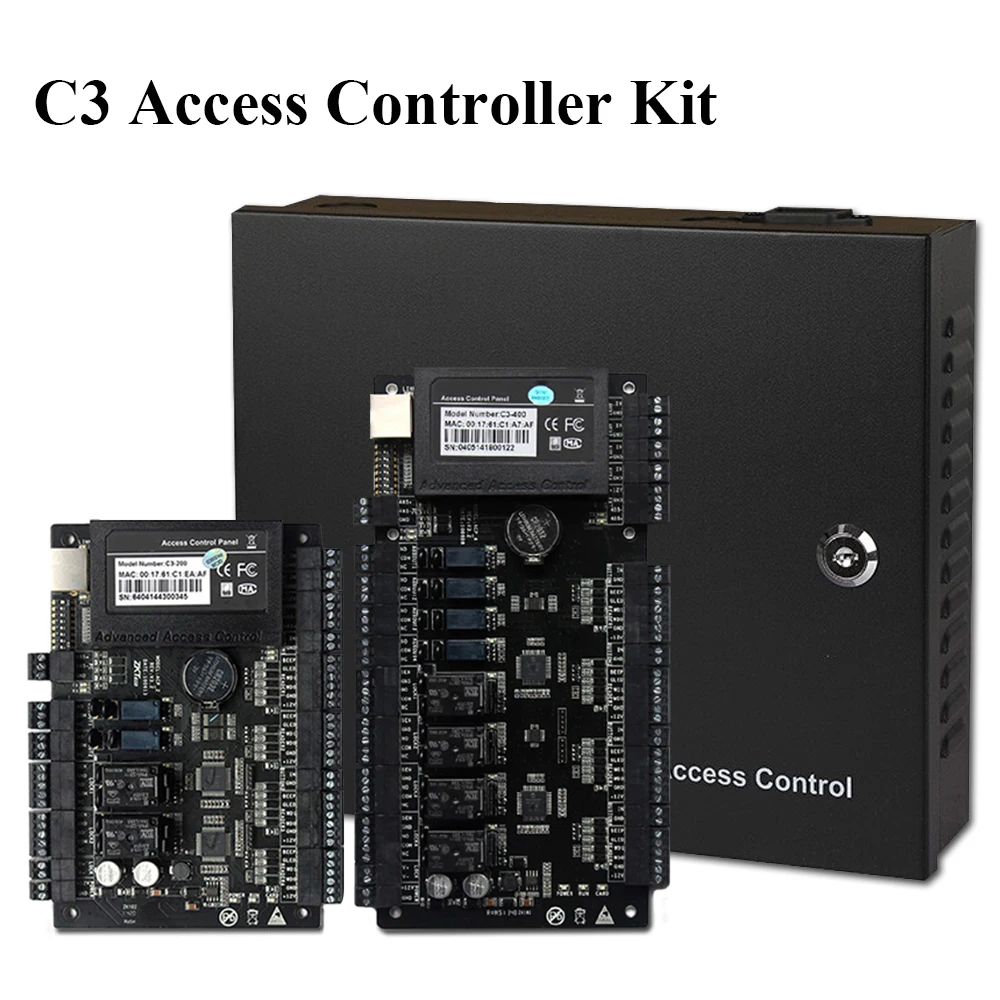

The ZKTeco C3‑400 Plus is a high‑performance access control controller engineered for multi‑door security systems, supporting up to four access points with comprehensive authentication options including RFID card, password, and dynamic QR code. Built on a Linux operating system with a dedicated hardware platform, the C3‑400 Plus delivers reliable performance for medium‑sized enterprises and organizations in Pakistan looking for efficient centralized control of doors and secure entry policies.
With support for up to 100,000 users, 100,000 card credentials, and 100,000 QR code records, the controller offers substantial capacity and storage for large installations. It also holds up to 500,000 transaction logs for detailed auditing and reporting. Multiple communication interfaces including TCP/IP, RS‑485 (with OSDP support), Wiegand, and USB ensure flexible integration with ZKTeco readers as well as third‑party access devices. Standard security features like anti‑passback, anti‑tailgating, access levels, and holiday scheduling help enforce complex access rules.
Key Features
Authentication & Capacity
-
Supports multi‑factor authentication: RFID card, password, and dynamic QR code for flexible secure access.
-
User capacity up to 100,000 — suitable for organizations with large workforces.
-
Stores 100,000 card credentials and 100,000 QR code records.
-
Transaction memory up to 500,000 logs for complete activity tracking.
Multi‑Door Control & Scalability
-
Controls four access points, ideal for medium‑sized buildings and multi‑door systems.
-
Support for up to 8 RS‑485 readers and 4 Wiegand readers for flexible system design.
-
Compatible with EX0808 I/O expansion boards to extend input/output capability.
Connectivity & Integration
-
TCP/IP network communication for central management and remote configuration.
-
RS‑485 with OSDP (Version 2.1.7) for secure reader connections.
-
Wiegand interface for third‑party reader compatibility.
-
USB Type‑A port (USB drive only) for data transfer and offline configuration.
Security & Access Logic
-
AES 256‑bit encrypted storage and AES 128‑bit encrypted communication between device components.
-
Built‑in webserver for on‑board setup and monitoring.
-
Standard access control functions including access levels, access groups, anti‑passback, anti‑tailgating, holidays, and event linkage.
Inputs & Outputs
-
4 exit button inputs, 4 door status inputs, and 4 auxiliary inputs.
-
4 Form C relays for electric locks and 4 Form C relays for auxiliary outputs (expandable with external boards).
Physical & Environmental
-
Powered by 9.6V–14.4V DC for stable access control operation.
-
Operates reliably in temperature 0°C–45°C and humidity 20%–80% RH (non‑condensing).
-
Compact form factor: 215.88 × 99.14 × 19.3 mm (L×W×H).
-
Wall‑mountable with optional metal enclosure and space for backup battery (recommended for uninterrupted operation).
